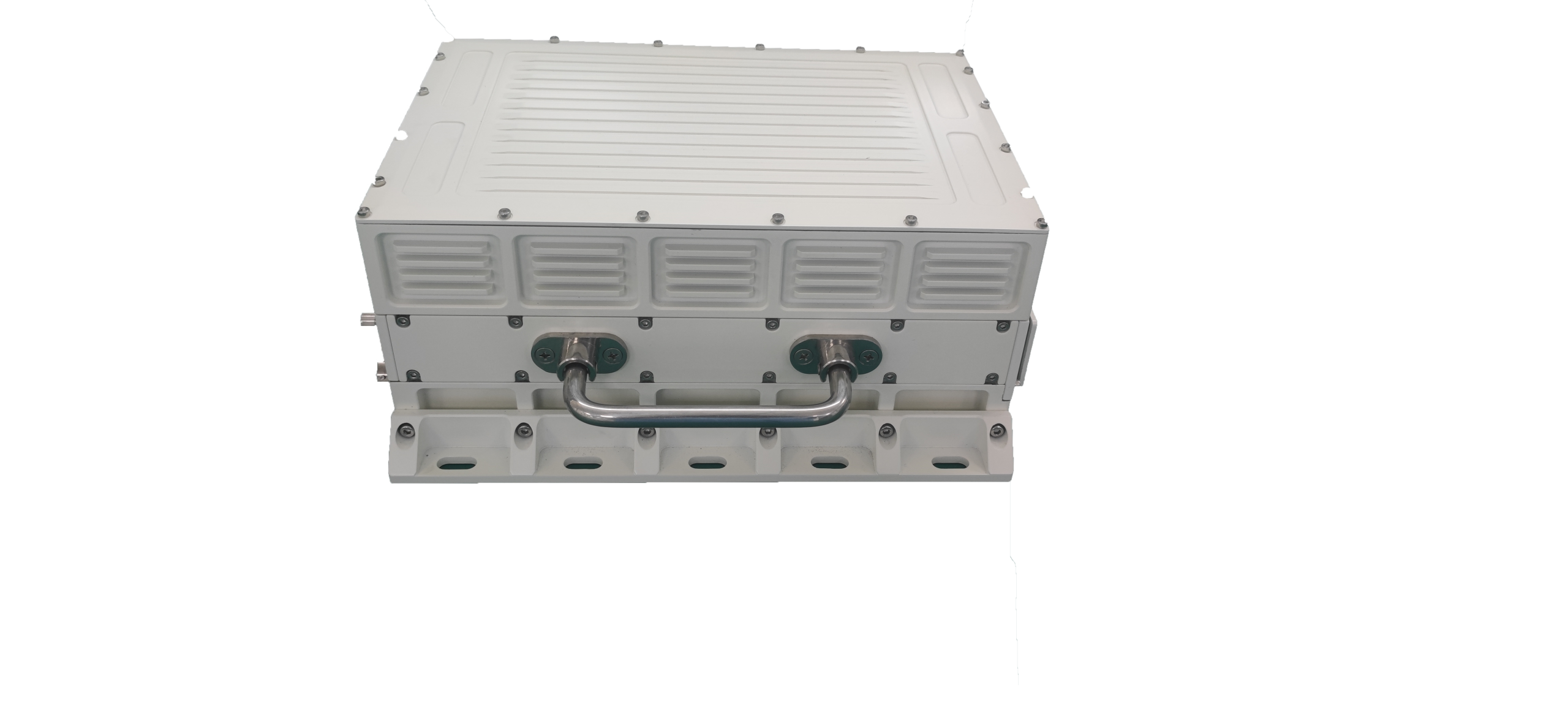

1.7-6GHz Solid State Power Amplifier
. Frequency range: 1.7-6GHz
. Psat: ≥49dBm, Gain: ≥49dB
. Built-in control, monitoring and protection circuits
Description
The GPAR503440133S50–1.7–6G is a 1.7-6GHz, saturated power ≥49dBm high gain solid state power amplifier with state-of-art GaN design technology. lt has higher saturated output power while keeping higher P1dB and better linearity, and can adapt to a variety of different signal modes such as continuous wave, pulse, wide instantaneous bandwidth signal, high-order modulation signal and etc.
It is designed for applications, such as 5G ,LTE,WIFI,ECM testing and etc.
| Power Amplifiers | |
|---|---|
| Frequency range(GHz) | |
| Gain Min(dB) | |
| Saturated Output Power (dBm) Min. | |
| P1dB (dBm) Min. | |
| Small Signal Gain (dB) | |
| Small Signal Gain Flatness (dB) | |
| Isolation@ Disable Status (dB) | |
| Input Power (dBm) | |
| 2nd Harmonic Suppression( dBc)max | |
| Spurious Suppression (dBc) Max. | |
| Input VSWR :1 Max. | |
| Supply Voltage (V) | |
| Power Consumption (W) | |
| 3rd Harmonic Suppression( dBc)max |
