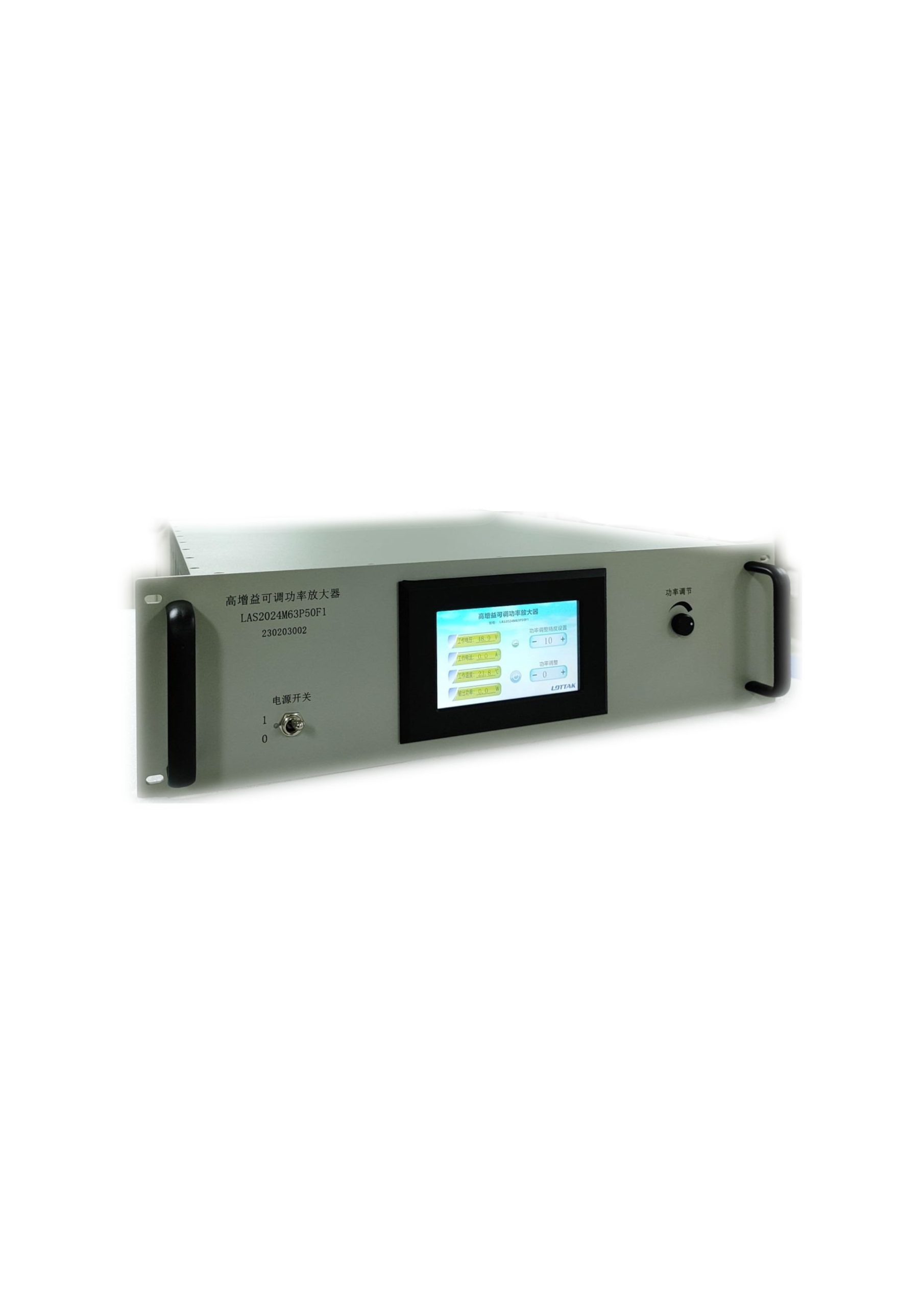

6-18GHz Solid State Power Amplifier
. Frequency range: 6-18GHz
. Psat: ≥43dBm, Gain: ≥43dB
. Built-in control, monitoring and protection circuits
GPAR503440133S43-6-18G Datasheet
Description
The GPAR503440133S43–2–6G is a 6-18GHz, saturated power ≥43dBm high gain solid state power amplifier with state-of-art GaN design technology. lt has higher saturated output power while keeping higher P1dB and better linearity, and can adapt to a variety of different signal modes such as continuous wave, pulse, wide instantaneous bandwidth signal, high-order modulation signal and etc.
It is designed for applications, such asradar, communication, EMC testing and etc.
| Power Amplifiers | Solid State Power Amplifier |
|---|---|
| Frequency range(GHz) | 6~18 |
| Gain Min(dB) | 45/43@ Pin=0dBm |
| Saturated Output Power (dBm) Min. | |
| P1dB (dBm) Min. | 42/43 |
| Gain Flatness (dB) | ±1.5@ Pin=0dBm |
| Small Signal Gain (dB) | 55@ Pin=-30dBm |
| Small Signal Gain Flatness (dB) | ±3@ Pin=-30dBm |
| Isolation@ Disable Status (dB) | |
| Input Power (dBm) | |
| 2nd Harmonic Suppression( dBc)max | -20/-12@ Pout=43dBm |
| 3rd Harmonic Suppression( dBc)max | -30/-12@ Pout=43dBm |
| Spurious Suppression (dBc) Max. | -70/-65@ Pout=47dBm |
| Input VSWR :1 Max. | 1.5/2 |
| Supply Voltage (V) | 110-240 (47-61Hz / Single-Phase) |
| Power Consumption (W) | 800@ Pin=0dBm |
