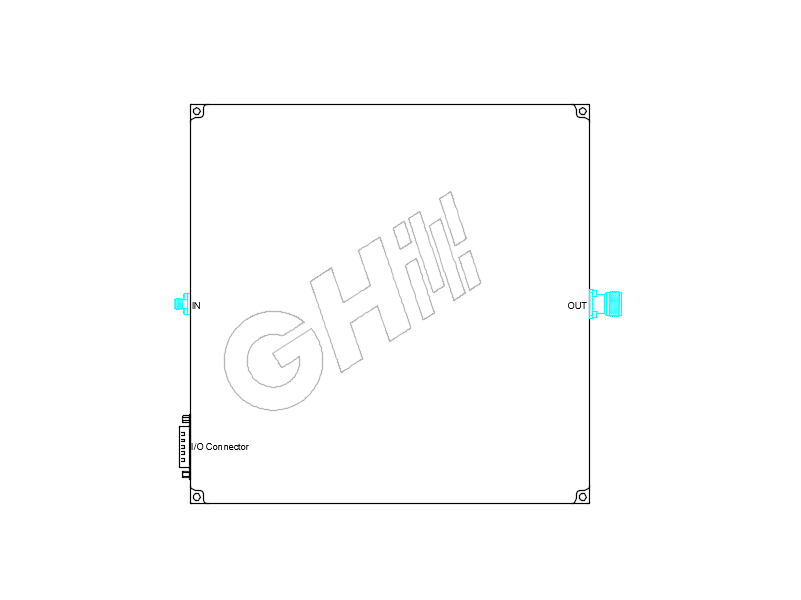

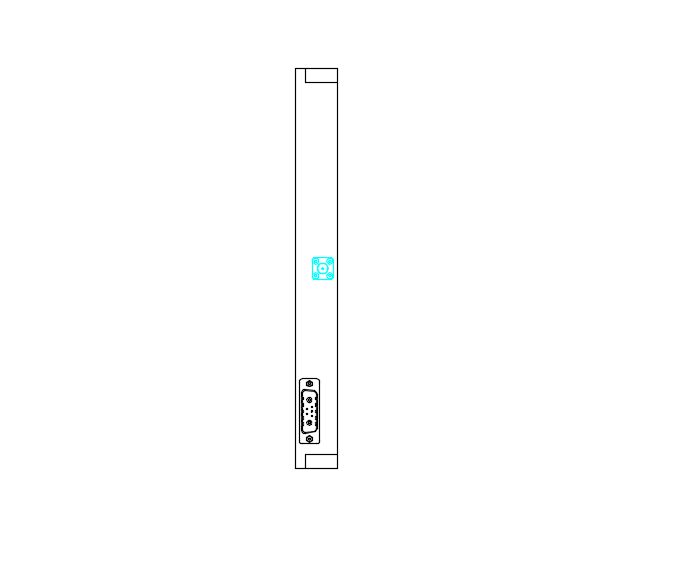

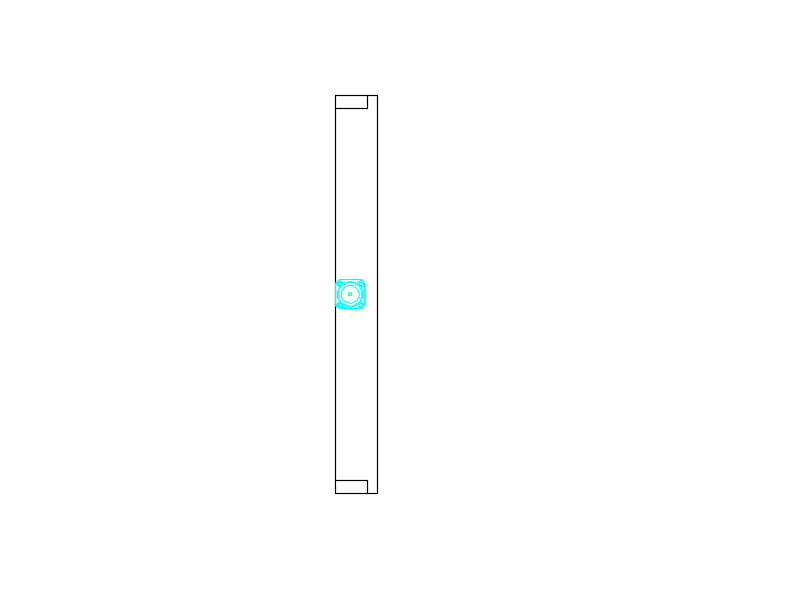

0.03-0.512GHz Solid State Power Amplifier
. Frequency range: 0.03-0.512GHz
. Psat: ≥50dBm, Gain: ≥50dB
. Built-in control, monitoring and protection circuits
Description
The GPA24024025-0.03-0.512G is a 0.03-0.512GHz, saturated power ≥50dBm high gain solid state power amplifier with state-of-art GaN design technology. lt has higher saturated output power while keeping higher P1dB and better linearity, and can adapt to a variety of different signal modes such as continuous wave, pulse, wide instantaneous bandwidth signal, high-order modulation signal and etc. It is designed for applications, such as Radio FM, television, EMC testing and etc.
| Frequency range(GHz) | 0.03~0.512 |
|---|---|
| Gain Min(dB) | 51/50@ Pin=0dBm |
| Saturated Output Power (dBm) Min. | |
| P1dB (dBm) Min. | 49/48 |
| Gain Flatness (dB) | ±1.5@ Pin=0dBm |
| Small Signal Gain (dB) | 55@ Pin=-30dBm |
| Small Signal Gain Flatness (dB) | ±2.5@ Pin=-30dBm |
| Isolation@ Disable Status (dB) | |
| Input Power (dBm) | |
| 2nd Harmonic Suppression( dBc)max | -15/-10@Pout=50dBm |
| Spurious Suppression (dBc) Max. | -70/-65@ Pout=50dBm |
| Input VSWR :1 Max. | 1.5/2 |
| Switching Time (us) | 2@ 1kHz TTL，Pin=0dBm |
| Supply Voltage (V) | 28 |
| Power Consumption (W) | 350@ Pin=0dBm |
