Applications
0.7-2.7GHz Solid State Power Amplifier
. Frequency range: 0.7-2.7GHz
. Psat: ≥49dBm, Gain: ≥49dB
. Built-in control, monitoring and protection circuits

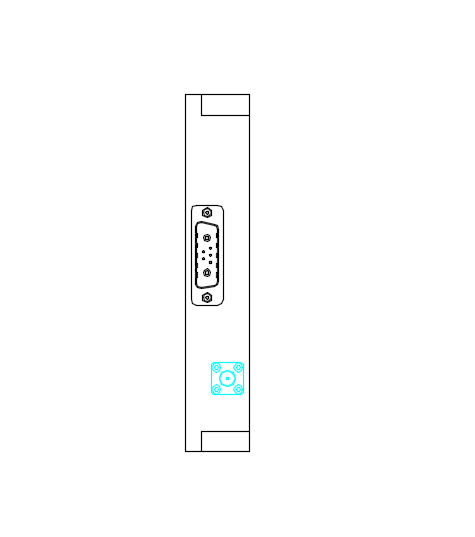

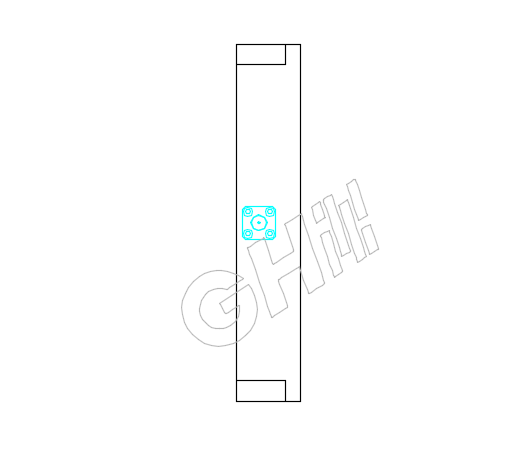

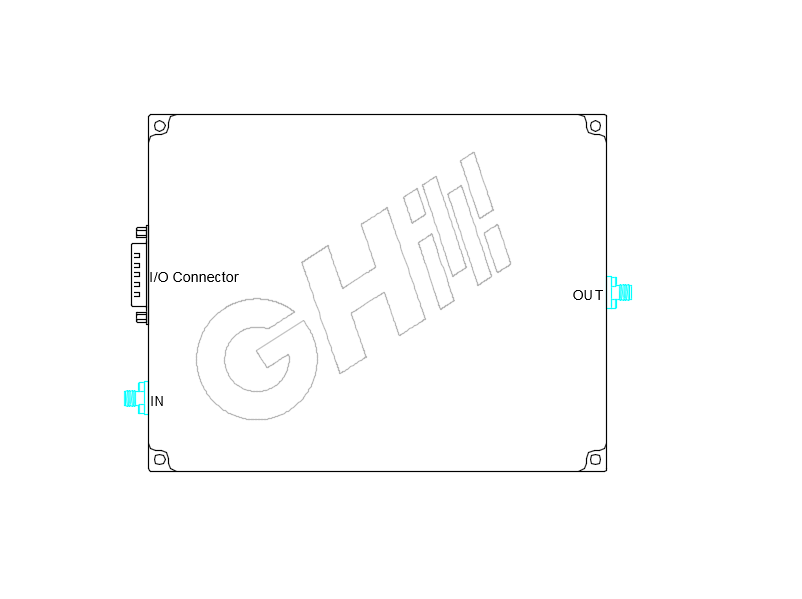

Description
The GPA18014025S50–0.7–2.7G is a 0.7-2.7GHz, saturated power ≥49dBm high gain solid state power amplifier with state-of-art GaN design technology. lt has higher saturated output power while keeping higher P1dB and better linearity, and can adapt to a variety of different signal modes such as continuous wave, pulse, wide instantaneous bandwidth signal, high-order modulation signal and etc.
It is designed for applications, such as WIFI ,television, 5G, LTE, EMC testing and etc.
| Frequency range(GHz) | 0.7-2.7 |
|---|---|
| Gain Min(dB) | 50/49@ Pin=0dBm |
| Saturated Output Power (dBm) Min. | |
| P1dB (dBm) Min. | 47.5/46.5 |
| Gain Flatness (dB) | ±1.3@ Pin=0dBm |
| Small Signal Gain (dB) | 55@ Pin=-30dBm |
| Small Signal Gain Flatness (dB) | ±1.5@ Pin=-30dBm |
| Isolation@ Disable Status (dB) | |
| Input Power (dBm) | |
| 2nd Harmonic Suppression( dBc)max | -20/-10@ Pout=49dBm |
| Spurious Suppression (dBc) Max. | -70/-65@ Pout=49dBm |
| Input VSWR :1 Max. | 1.5/2 |
| Switching Time (us) | 2@ 1kHz TTL，Pin=0dBm |
| Supply Voltage (V) | 28 |
| Power Consumption (W) | 350@ Pin=0dBm |
