Applications

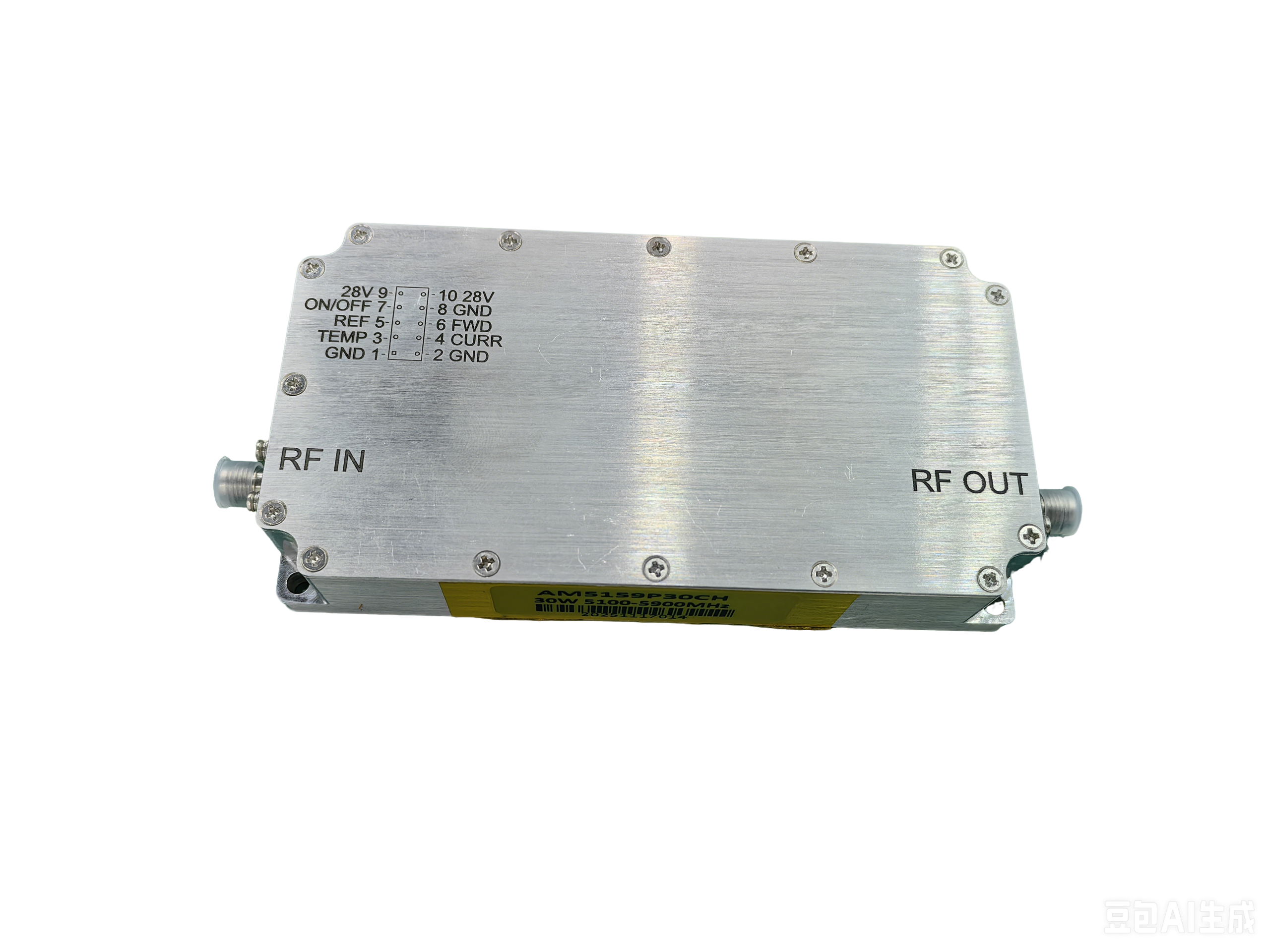

0.38-2GHz Solid State Power Amplifier
. Frequency range: 0.38-2GHz
. Psat: ≥47dBm, Gain: ≥47dB
. Built-in control, monitoring and protection circuits
GPA17016525S47-0.38-2G Datasheet
Description
TheGPA17016525S47–0.38–2G is a 0.38-2GHz, saturated power ≥47dBm high gain solid state power amplifier with state-of-art GaN design technology. lt has higher saturated output power while keeping higher P1dB and better linearity, and can adapt to a variety of different signal modes such as continuous wave, pulse, wide instantaneous bandwidth signal, high-order modulation signal and etc.
It is designed for applications, such as 5G ，LTE，EMC testing and etc.
| Frequency range(GHz) | 0.38-2 |
|---|---|
| Gain Min(dB) | 48/47@ Pin=0dBm |
| Saturated Output Power (dBm) Min. | |
| P1dB (dBm) Min. | 46/45 |
| Gain Flatness (dB) | ±1@ Pin=0dBm |
| Small Signal Gain (dB) | 53@ Pin=-30dBm |
| Small Signal Gain Flatness (dB) | ±2@ Pin=-30dBm |
| Isolation@ Disable Status (dB) | |
| Input Power (dBm) | |
| 2nd Harmonic Suppression( dBc)max | -25/-15@ Pout=47dBm |
| 3rd Harmonic Suppression (dBc)Max | -70/-65@ Pout=47dBm |
| Spurious Suppression (dBc) Max. | -70/-65@ Pout=47dBm |
| Input VSWR :1 Max. | 1.5/2 |
| Switching Time (us) | 2@ 1kHz TTL，Pin=0dBm |
| Supply Voltage (V) | 28 |
| Power Consumption (W) | 200@ Pin=0dBm |
