Applications
26.5-40GHz Solid State Power Amplifier
. Frequency range: 26.5-40GHz
. Psat: ≥40dBm, Gain: ≥40dB
. Built-in control, monitoring and protection circuits

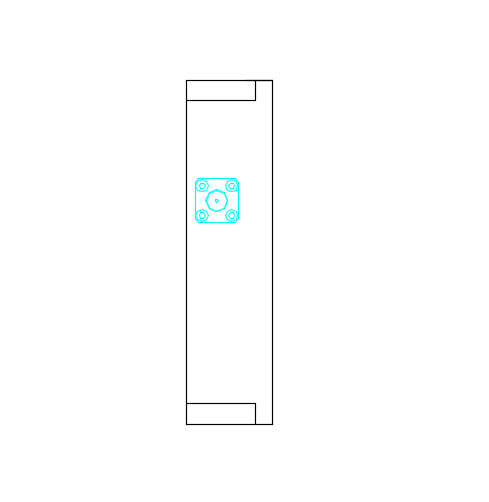

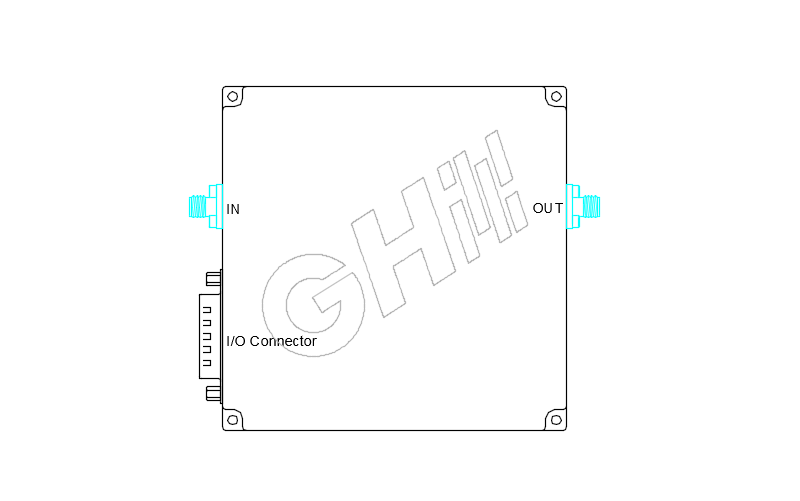

Description
TheGPA10010025S40–26.5-40G is a 26.5-40GHz, saturated power ≥40dBm high gain solid state power amplifier with state-of-art GaN design technology. lt has higher saturated output power while keeping higher P1dB and better linearity, and can adapt to a variety of different signal modes such as continuous wave, pulse, wide instantaneous bandwidth signal, high-order modulation signal and etc.
It is designed for applications, such as Radio 5G& Millimeter Test System.
| Frequency range(GHz) | 26.5-40 |
|---|---|
| Gain Min(dB) | 41/40@ Pin=0dBm |
| Saturated Output Power (dBm) Min. | |
| P1dB (dBm) Min. | 37/35 |
| Gain Flatness (dB) | ±2.5@ Pin=0dBm |
| Small Signal Gain (dB) | 45@ Pin=-30dBm |
| Small Signal Gain Flatness (dB) | ±3@ Pin=-30dBm |
| Isolation@ Disable Status (dB) | |
| Input Power (dBm) | |
| Spurious Suppression (dBc) Max. | -70/-65@ Pout=37dBm |
| Input VSWR :1 Max. | 2/2.5 |
| Switching Time (us) | 2@ 1kHz TTL，Pin=0dBm |
| Supply Voltage (V) | 28 |
| Power Consumption (W) | 150@ Pin=0dBm |
