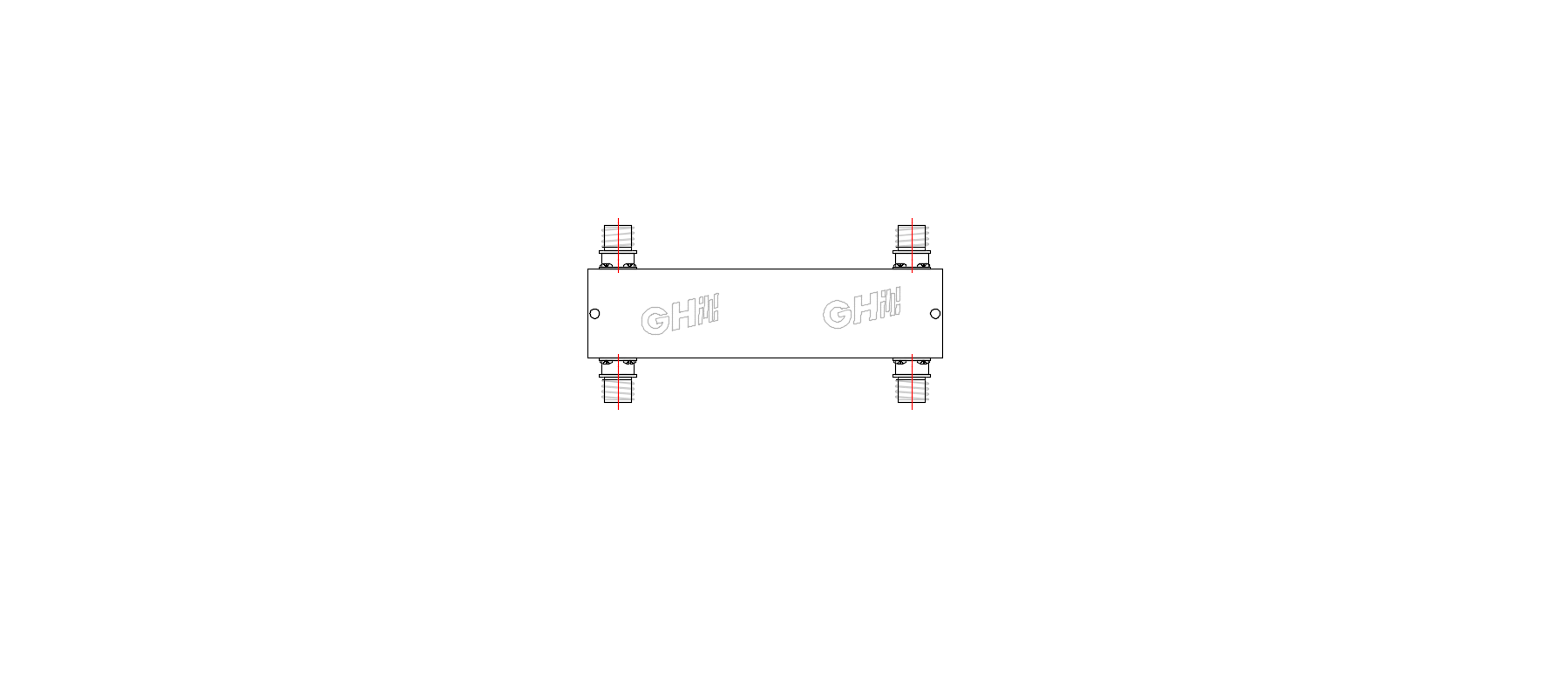

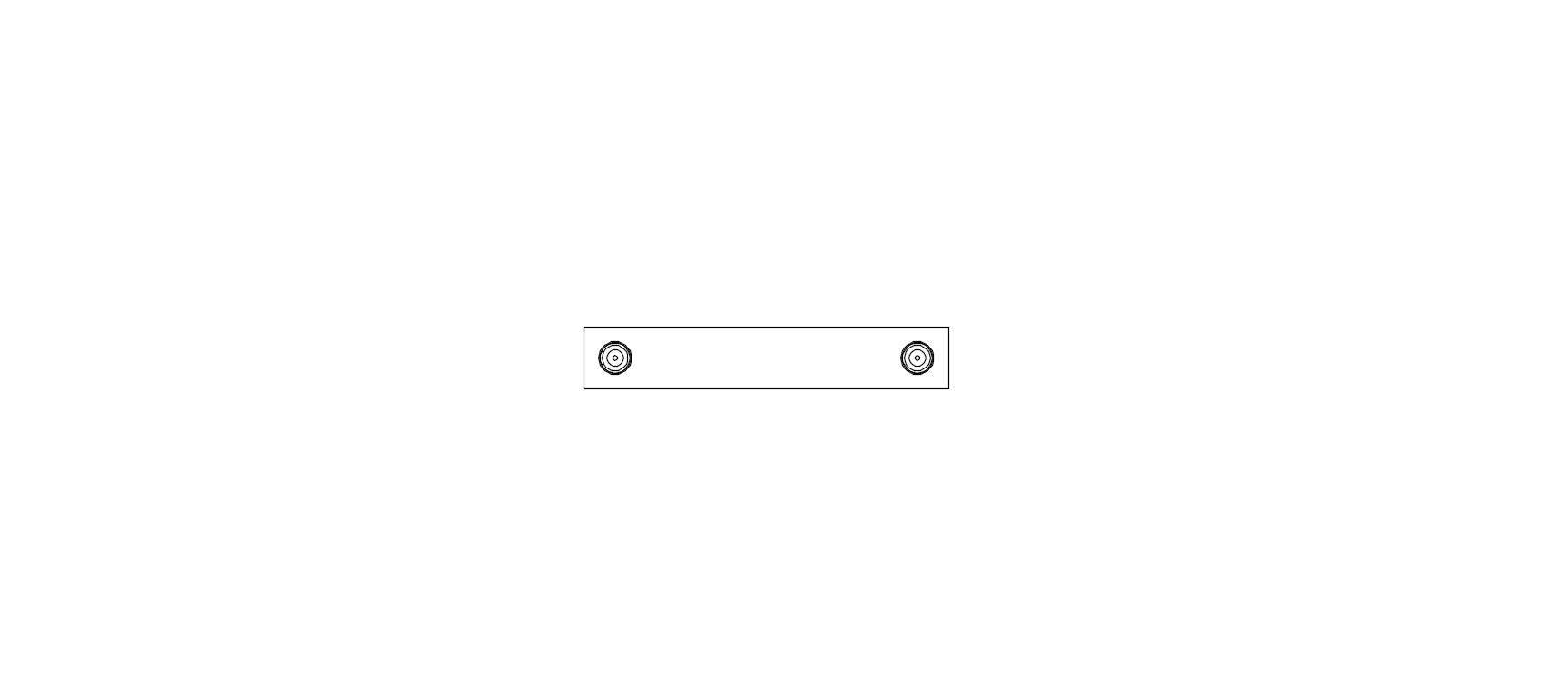

The GHHC180N–0.8–2.5G is a high power 180 degree hybrid coupler that operates from 0.8 to 2.5 GHz and can handle up to 250 Watts(CW) with 18 dB isolation minimum and 1.30:1 VSWR maximum. The package interface uses N female connectors,and REACH and RoHS compiant.
Hybrids Couplers featuring broad bandwidths together with tight amplitude imbalances and phase imbalance specifications. Signal splitters, combiners, balanced mixers, image-rejection mixers, phase shifters, diplexers, switches, and antenna beam-forming networks are all functions of hybrid couplers that are employed in a variety of commercial and military applications.
For various applications, including as commercial wireless, SATCOM, radar, signal monitoring and measuring, antenna beam shaping, and EMC testing conditions, these couplers offer straightforward solutions.
