The GHDC10S-1-10G is a 10dB directional coupler that operates from 1 to 10GHz and can handle up to 50 Watts(CW)with 18 dB directivity minimum and 1.40:1 VSWR maximum.
Couplers are specifically developed for system applications that require external leveling, accurate monitoring, signal mixing, or swept transmission and reflection measurements.
For various applications, including as electronic warfare (EW), commercial wireless, SATCOM, radar, signal monitoring and measuring, antenna beam shaping, and EMC testing conditions, these couplers offer straightforward solutions.

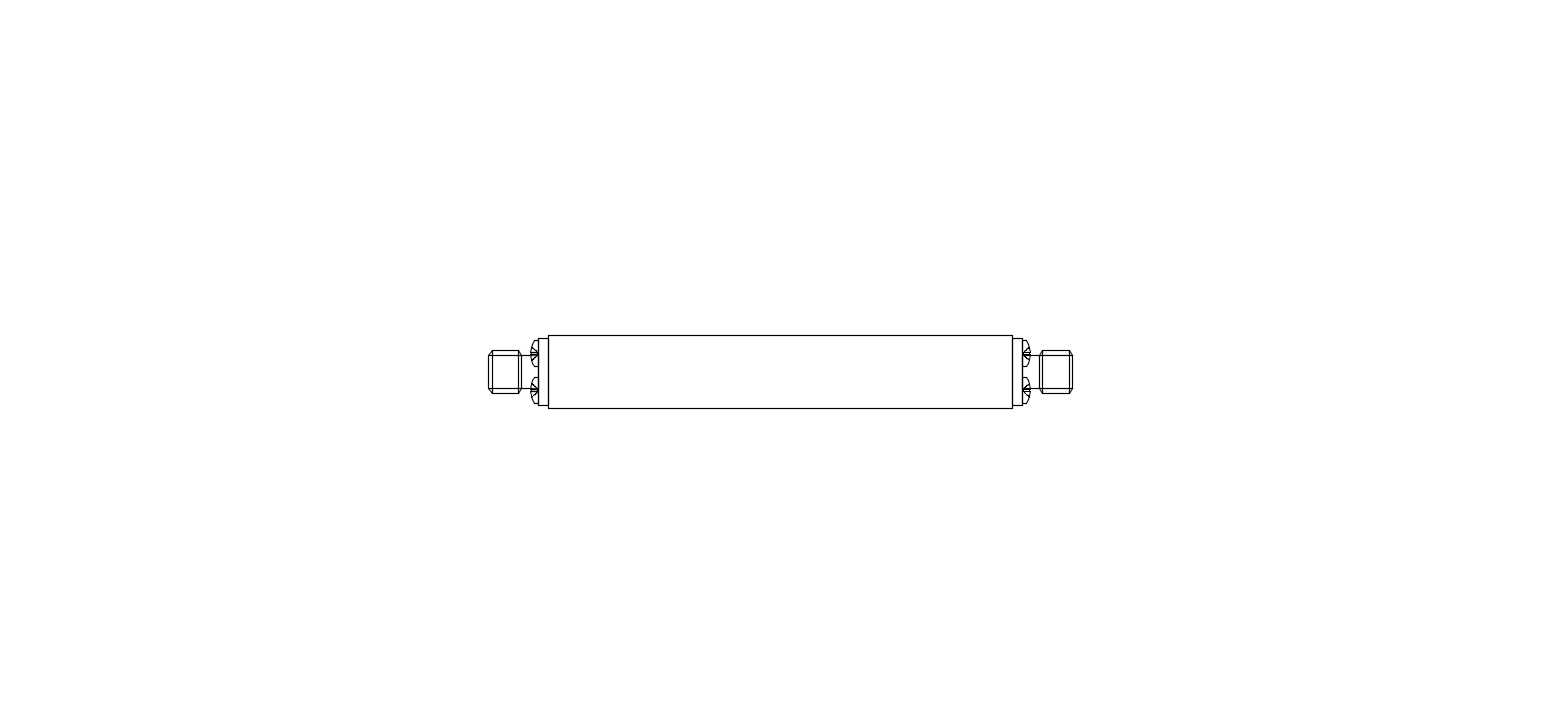

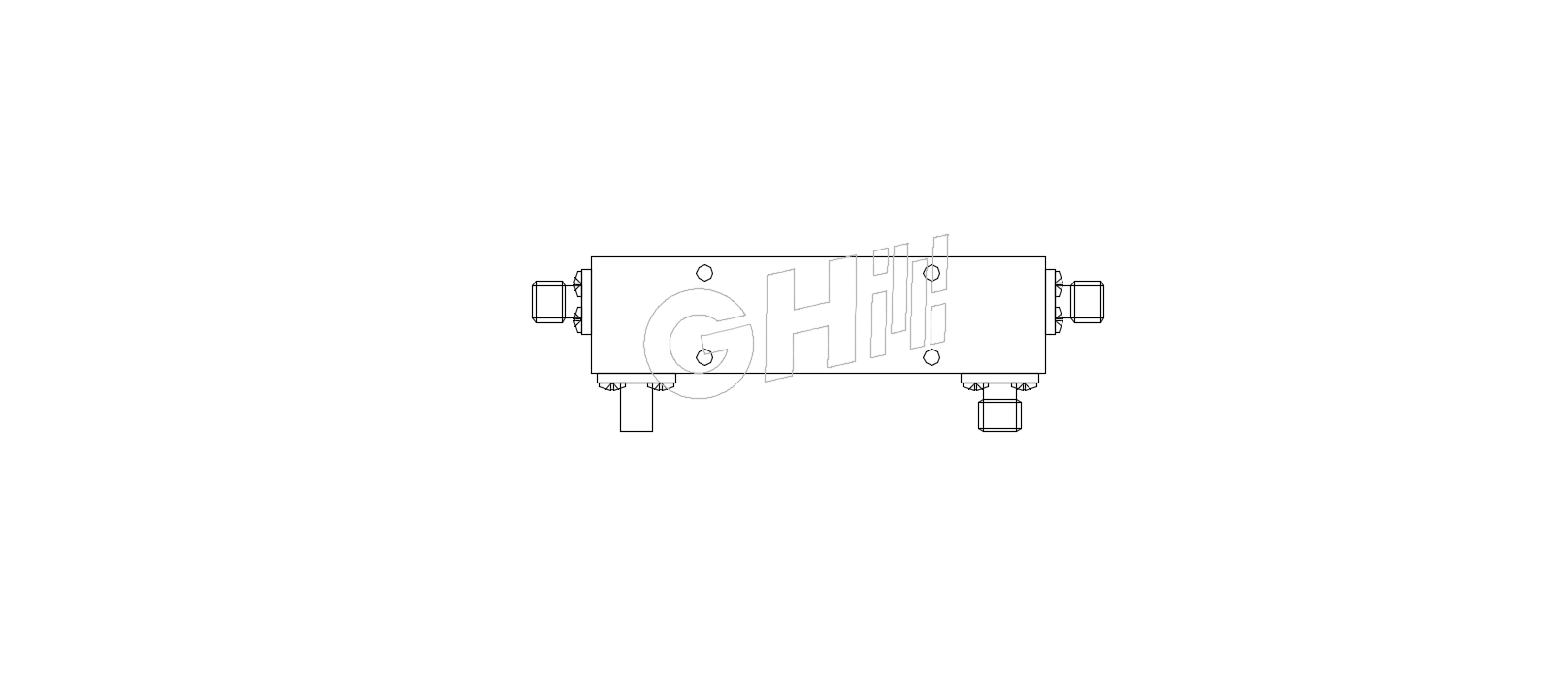

GHDC10S-1-10G
Applications
. Wireless Communications . Military Communications
. SATCOM . Commercial Communications
. Test and Measurement . including as electronic warfare (EW)
| Directional Couplers | Diectional |
|---|---|
| Frequency range(GHz) | 1~10 |
| Coupling(dB) | 10±1 |
| Frequency Sensitivity(dB) | ≤ ±1.0 |
| Directivity(dB) | ≥ 18 |
| Insertion Loss(dB) | ≤1.3 |
| VSWR | ≤1.4:1 |
| Power Handling(Watt) | ≤ 50, ≤1000 Peak |
| Operating Temperature(℃） | -25 ~ +65 |
| Impedance | 50Ω |
| Port Connectors | SMA-Female |
| Surface Color | Black Paint |
