GHDC10N-1-10G

Applications

. Wireless Communications            . Military Communications

. SATCOM                                 . Commercial Communications

. Test and Measurement            . including as electronic warfare (EW)









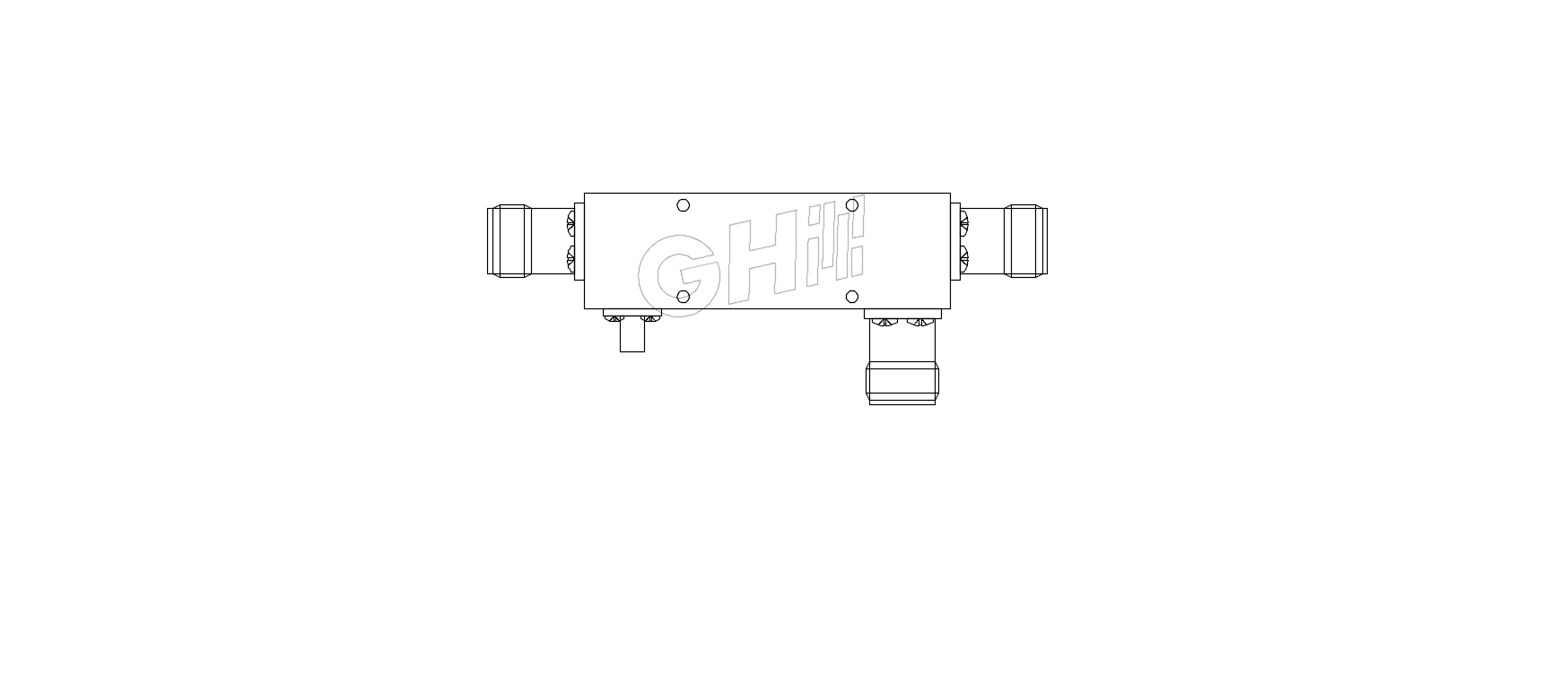

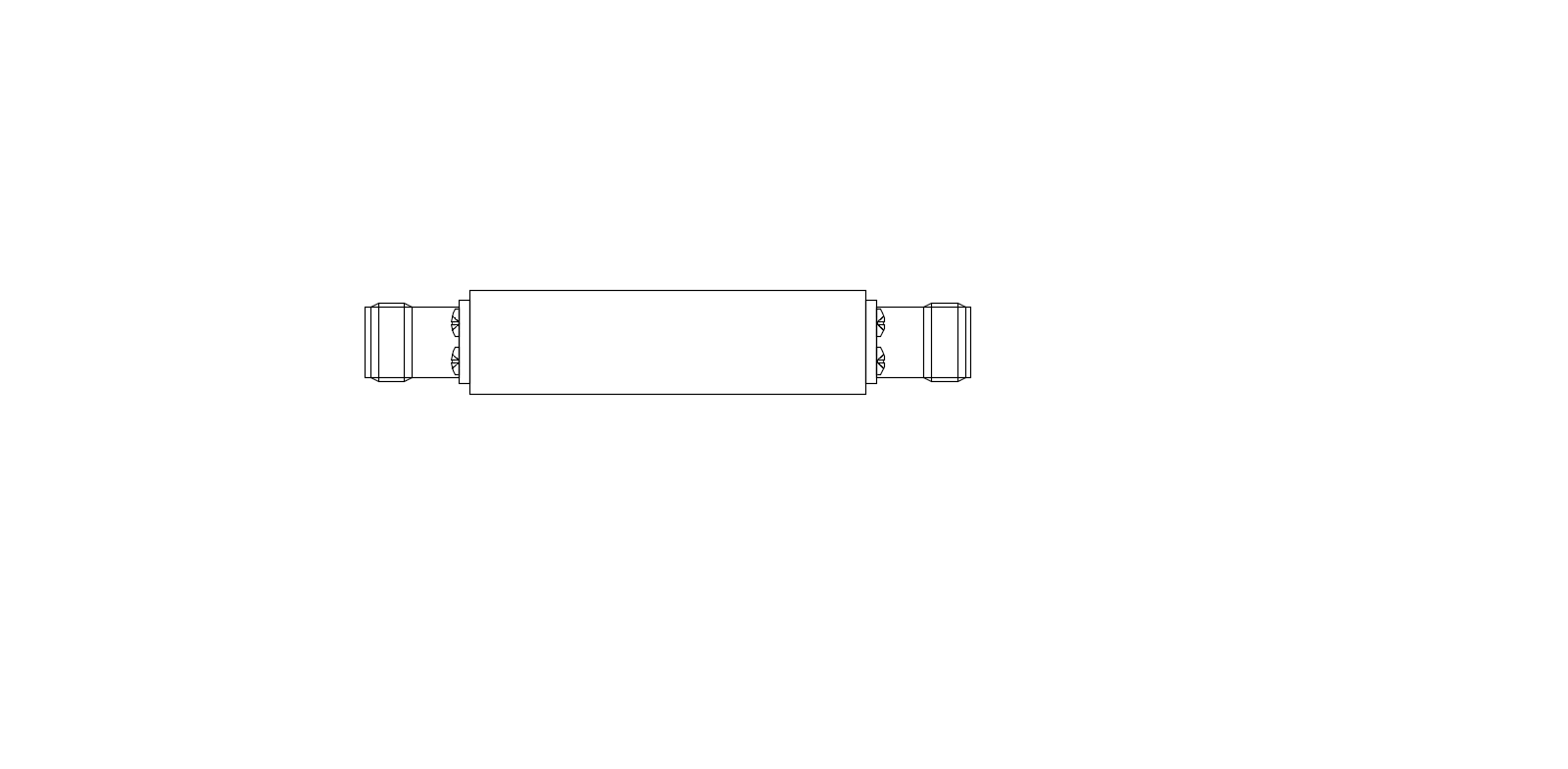

GHDC10N-1-10G Datasheet

The GHDC10N-1-10G is a 10dB directional coupler that operates from 1 to 10GHz and can handle up to 100 Watts(CW)with 15 dB directivity minimum and 1.50:1 VSWR maximum.
Couplers are specifically developed for system applications that require external leveling, accurate monitoring, signal mixing, or swept transmission and reflection measurements.
For various applications, including as electronic warfare (EW), commercial wireless, SATCOM, radar, signal monitoring and measuring, antenna beam shaping, and EMC testing conditions, these couplers offer straightforward solutions.

Directional Couplers

Diectional
Frequency range(GHz)

1~10
Coupling(dB)

10±1
Frequency Sensitivity(dB)

≤ ±1.0
Directivity(dB)

≥15
Insertion Loss(dB)

≤1.5
VSWR

≤1.5:1
Power Handling(Watt)

≤1000 Peak, Ave ≤100
Operating Temperature(℃）

-25 ~ +65
Impedance

50Ω
Port Connectors

N-Female
Surface Color

Black Paint
