Description
Microwave isolators are used for multi signal isolation in fields such as radar and microwave communication. They play a very important role in microwave equipment and systems, and are essential components in areas such as microwave antennas and microwave power amplifiers.
In practical applications, microwave isolators can also be combined with other microwave devices to form different microwave circuits and systems, expanding the application scope and functions of microwave devices.

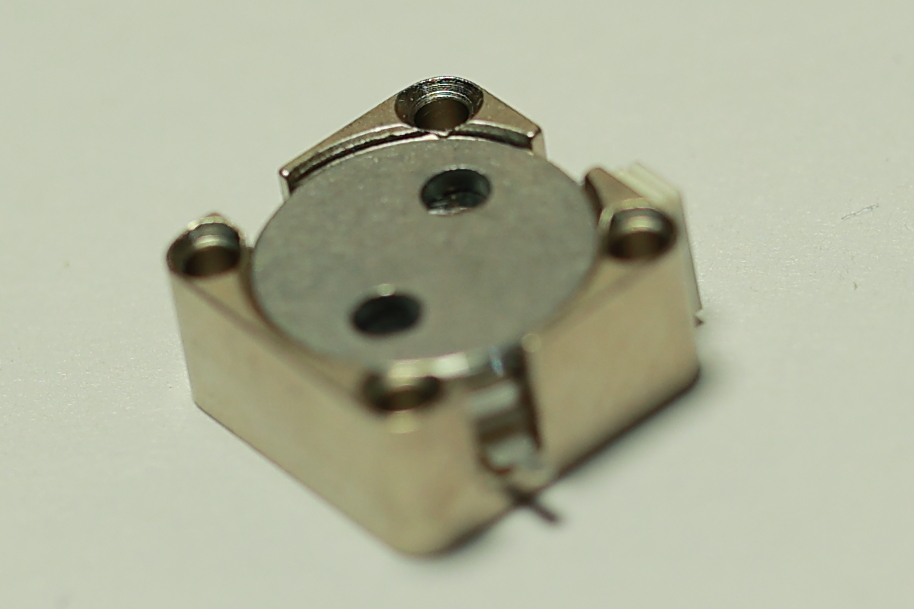

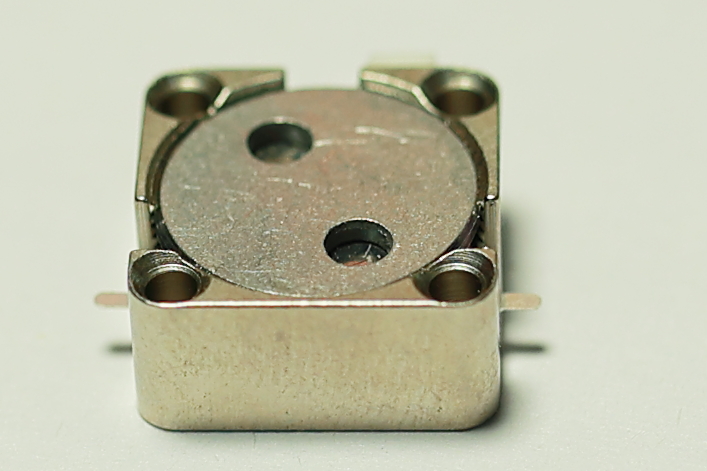

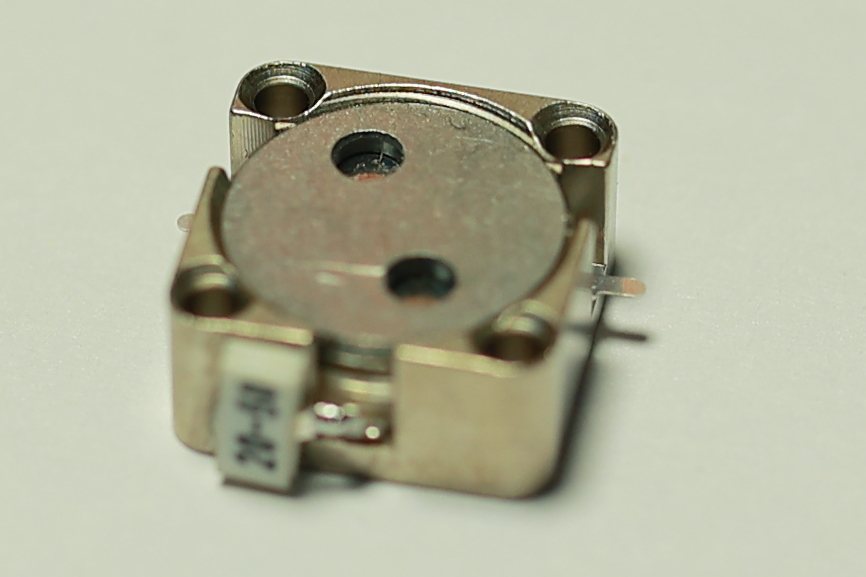

The GPGSDS1717-990-1130M is a single junction Isolator that offers a forward power rating of 100 Watt (CW) over an operational frequency band of 990MHz to 1130MHz. Electrical performance includes 1.2: 1 max VSWR, 21 dB min isolation, and 0.3 dB max insertion loss. The package interface uses Tab connectors, and is also REACH and RoHS compliant.
Design Features
- High RF performance ,Ultra-competitive price
- Custom design available upon request
- Meet ROHS standard,Military Standard System Certification,ISO9001
- The frequency can be produced according to th needs of users
- Support one year atandanrd warranty
Applications
- Protect the power Amplifier and Installed at the end of RF Power Amplifier
- Transceiver Common Antenna (TR Mode)
- Military
- Telecom Infrastructure
- Microwave RadioSystems
- Wireless Radio Systems
- Communication Systems
- Radar Systems
- R&D Labs
